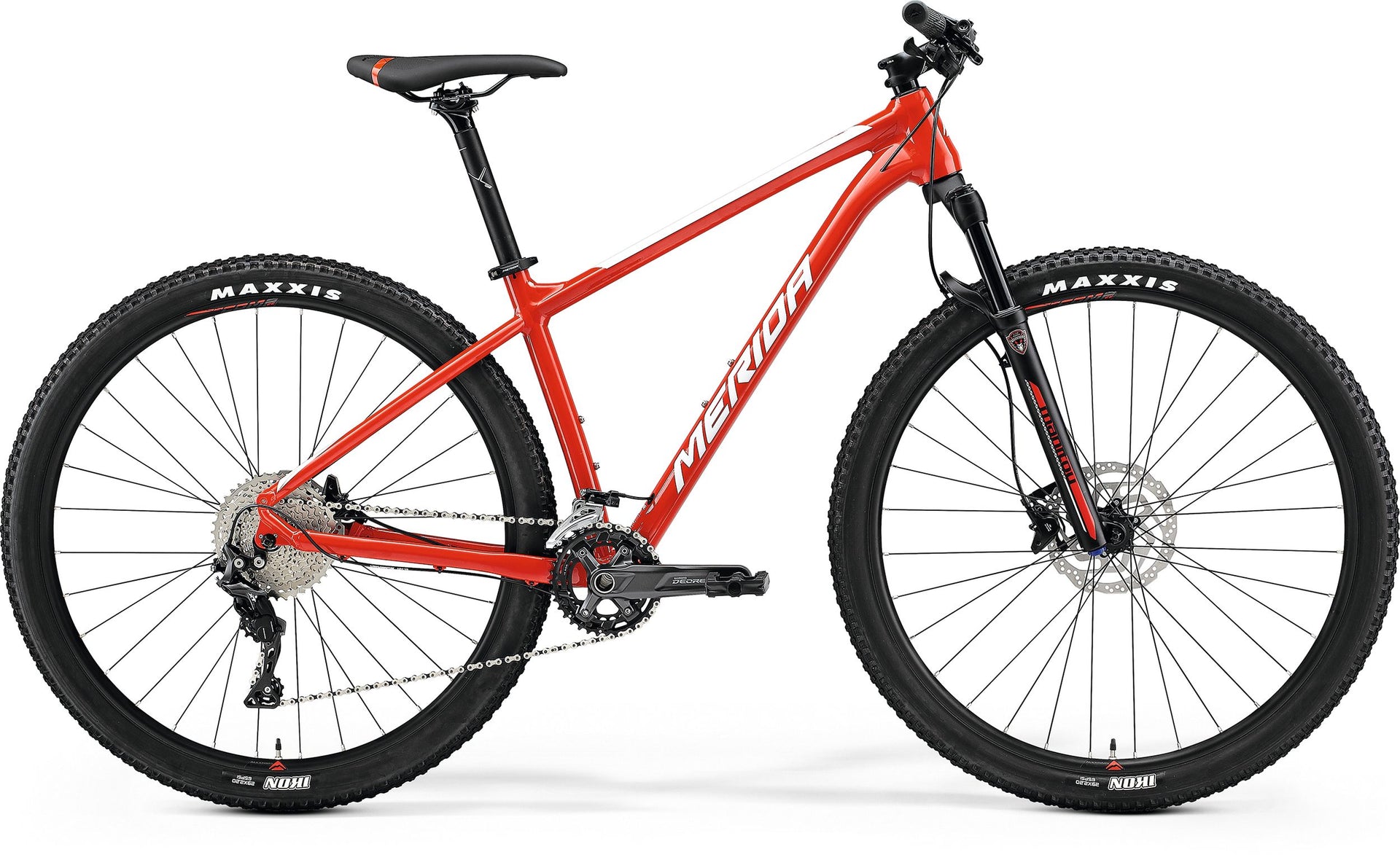

Merida Big Nine 500

R 16,900.00
R 16,900.00 R 19,499.00
Tax included. Shipping calculated at checkout.
size

Description

With almost 50 years of design and manufacturing experience behind it, bikes like the BIG.NINE 500 create the backbone of our range. This 29er aluminium hardtail combines quality, know-how and riding fun, all in one!

  • Double butted, smooth welded aluminium frame with 29er wheels
  • Less aggressive and more upright geometry for maximum control and comfort
  • Manitou Markhor 100 mm travel suspension fork with remote lockout
  • Shimano Deore 2x11-speed drivetrain
  • Shimano hydraulic disc brakes
  • Internal cable routing

Description

FRAME: BIG.NINE TFS III

  • material: aluminum
  • 29×2.25″ max. wheelsize
  • 135x9mm axle standard
  • BSA bottom bracket standard
  • Smooth welding

FRAME: SIZE S, M, L, XL, XXL

COLOUR :RACE RED (WHITE)

FORK:Manitou Markhor Comp

  • Air
  • 100mm suspension travel
  • Tapered
  • Lockout
  • 51mm fork offset

BRAKES:Shimano M4100

ROTORS: Shimano RT10

HEADSET: MERIDA M4455

HANDLEBAR: MERIDA EXPERT CC

HANDLEBAR STEM: MERIDA COMP cc

GRIPS: MERIDA COMP EC

DERAILLEUR (F):Shimano Deore

DERAILLEUR (R):Shimano Deore M5120 Shadow+

SHIFTERS:Shimano Deore M5100 2×11 SPD

SEAT POST:  MERIDA COMP CC

SEAT CLAMP: MERIDA COMP QR

SADDLE:MERIDA COMP SL

PEDAL: VP NYLON

CHAIN: KMC X11

CRANKSET: Shimano Deore M5100 36-26t

FREEWHEEL: Shimano Deore M5100 11spd 11-42t

BOTTOM BRAKET: Shimano BB52 BSA

HUBS Shimano TX505

  • 100x9mm width front hub
  • 32 spoke holes
  • Centerlock
  • 135x9mm width rear hub
  • 32 spoke holes
  • Centerlock

RIM MERIDA COMP CC

TYRES: Maxxis Ikon 29×2.2 wire

SPOKES Black stainless

MAX. WEIGHT 135 kg
